Fixed Plate Cloth Media Filters & Weirboxes - No Moving Parts

Fixed Plate Cloth Media Filters for Wastewater

NO Moving Parts for Simple Operation & Reduced Maintenance

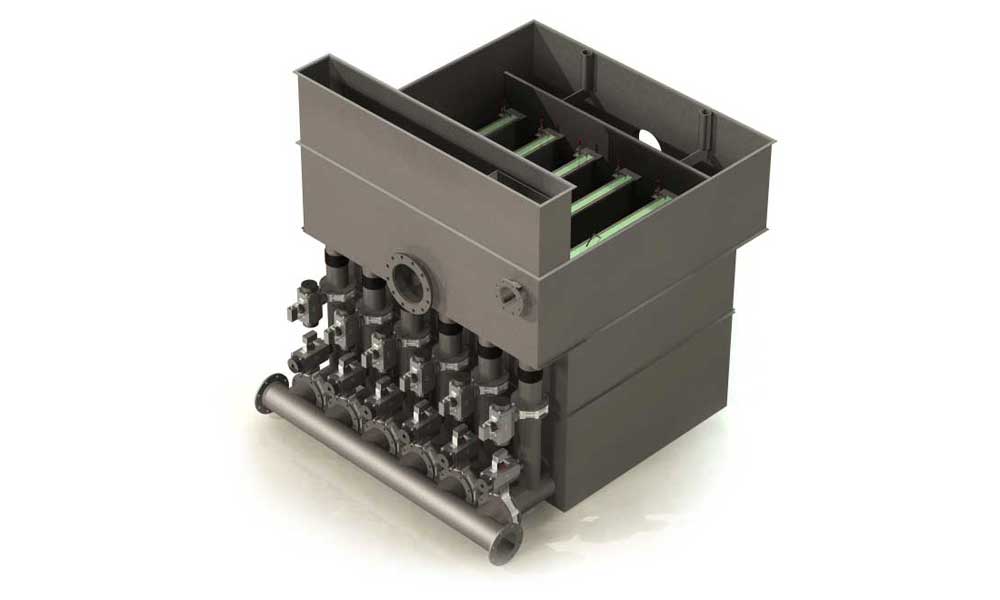

MFC's Cloth Media Filters are the industry's first cloth media filters designed specifically for treatment of municipal and industrial wastewater that feature cloth media filter plates that are FIXED in place AT ALL TIMES. These innovative cloth media filters utilize unique hydraulics and the latest cloth filter media technology to remove suspended solids (TSS), turbidity (NTU), and Phosphrous (P) from secondary process streams.

MFC's cloth media filter systems use a combination of differential head, a small amount of compressed air, and a series of simple open-close pneumatic valves to provide wastewater filtration & backwash flow control. This allows MFC's cloth media filter systems to work WITHOUT pumps, drive motors, chain gears, high-pressure spray bars, backwash/sludge manifolds, or ANY other mechanical wear items, resulting in a uniquely simple, effective, and operator friendly cloth media tertiary treatment system. Vertically placed cloth media panels reduce equipment footprint and installation expense.

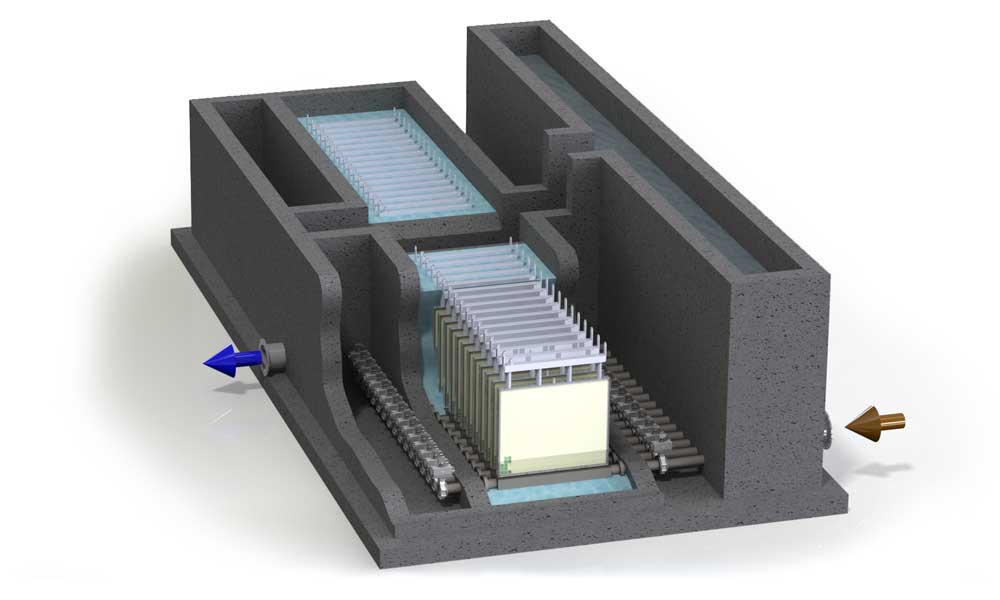

MFC's cloth media filter systems offer proven performance in a wide range of flows and applications. 100% stainless steel packaged systems are available for flows from 10gpm to 6.0 MGD. Modular components are available for installation into new and existing concrete tanks and basins. ALL internal equipment, tankage and media elements are fabricated from 100% stainless steel for long life and reduced maintenance.

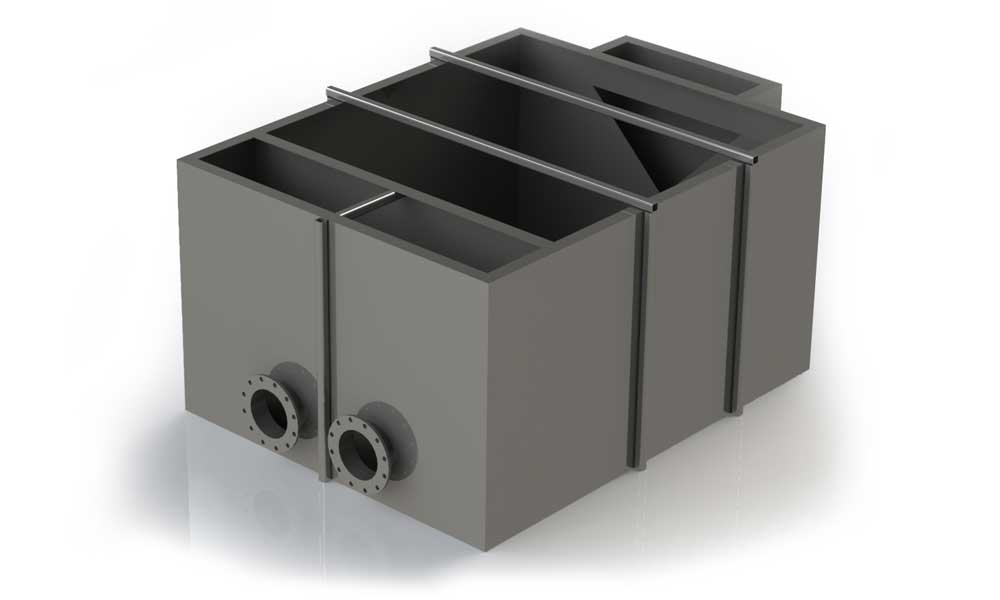

MFC also offers custom fixed weir boxes for influent/effluent flow measurement, splitting, equalization, or storage. In addition, MFC can provide customized stainless steel tankage for chemical pre-mixing & other applications as well as design & manufacture of other custom stainless steel tanks and components. All weir boxes, tanks, and custom equipment is modeled in 3-D and subjected to detailed Finite Element Analysis prior to fabrication to ensure stength, long-life, and durability in the harshest Water & Wastewater enviroments.

Please Contact MFC for equipment details and pricing.


Articles & Links:

MFC Fixed Plate Cloth Media Filter Brochure - 2021
MFC Brochure
Download our latest brochure or contact MFC for product details & pricing.
White Paper: CA tribal project uses fixed plate cloth media filters to achieve Title 22 Reuse.
(Visit IWS Website)
Article: TX Reuse project features fixed plate tertiary cloth media filtration.
Paper: Tertiary Cloth Media Filtration Without Rotating Discs, Vacuum Pumps, or Spray Bars.
Newsletter: Fixed Plate Cloth Media Filter Technology successfully tested at Madison, WI WWTP (MMSD)

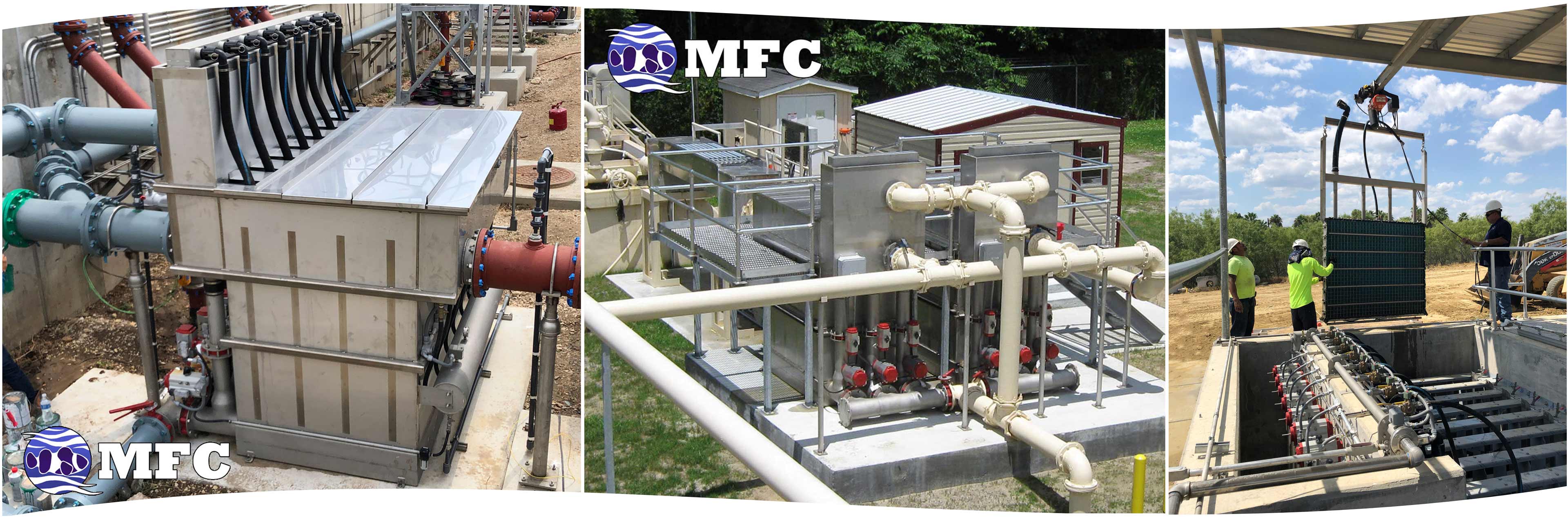

MFC's Fixed Plate Cloth Media Filters & Weir Boxes - Proven Performance
